Improving Data Visualizations

<br>
<br>
.right-panel[
<br>

# Improving Data Visualizations

## Dr. Mine Dogucu

]

---

]

.panel-name[English]
- Using the `babies` data,
- Map `gestation` to x-axis, `bwt` to y-axis, `smoke` to shape and color.
- Add a layer of points and set the size of the points to 4.
]

``` r
ggplot(babies,
       aes(x = gestation,
           y = bwt,
           shape = smoke,
           color = smoke)) +
  geom_point(size = 4)
```

]

---
class: middle

## Labs

]

.panel-name[English]
- Using the `babies` data,
- Map `gestation` to x-axis, `bwt` to y-axis, `smoke` to shape.
- Add a layer of points and set the size of the points to 4.
- .highlight-text[Add labels to x-axis (Gestation), y-axis (Birth Weight), and the title of the plot (Palmer babies).]

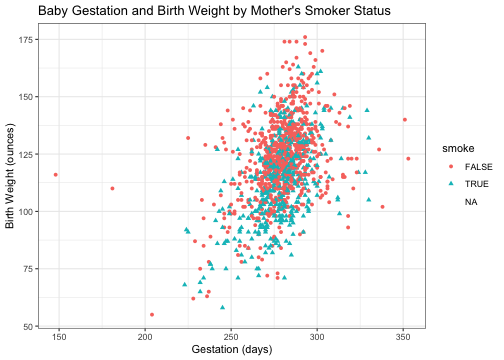

``` r
ggplot(babies,
       aes(x = gestation,
           y = bwt,
           shape = smoke,
           color = smoke)) +
  geom_point(size = 4) +
* labs(x = "Gestation (days)",
*      y = "Birth Weight (ounces)",
*      title = "Gestation and Birth Weight by Mother's Smoker Status")
```

]

---

``` r
ggplot(babies,
       aes(x = gestation,
           y = bwt,
           shape = smoke,
           color = smoke)) +
  geom_point() +
labs(x = "Gestation (days)",
       y = "Birth Weight (ounces)",
       title = "Gestation and Birth Weight by Mother's Smoker Status")
* theme_bw()
```

]

]

---

## Themes

]

]

]

]

]

]
]

---

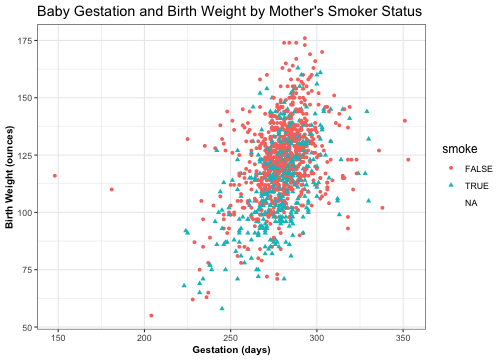

``` r
ggplot(babies,
       aes(x = gestation,
           y = bwt,
           shape = smoke,
           color = smoke)) +
  geom_point() +
  labs(x = "Gestation (days)",
       y = "Birth Weight (ounces)",
       title = "Baby Gestation and Birth Weight by Mother's Smoker Status") +
  theme_bw() +
  theme(title =
          element_text(size = 12),
        axis.title =
          element_text(size = 10,
                       face="bold"))
```

]

![](Lab-04b-improve-dataviz_files/figure-html/unnamed-chunk-15-1.png)
]

---

``` r
?theme
```

There are more aspects of a theme that we can control.

---

``` r
ggplot(babies,
       aes(x = gestation,
           y = bwt,
           shape = smoke,
           color = smoke)) +
  geom_point(size = 4) +
* facet_grid(.~parity)
```

]

.right-panel[
<img src="Lab-04b-improve-dataviz_files/figure-html/unnamed-chunk-18-1.png" style="display: block; margin: auto;" />
]

---

``` r
ggplot(babies,
       aes(x = gestation,
           y = bwt,
           shape = smoke,
           color = smoke)) +
  geom_point(size = 4) +
* facet_grid(parity~.)
```

]

.right-panel[
<img src="Lab-04b-improve-dataviz_files/figure-html/unnamed-chunk-20-1.png" style="display: block; margin: auto;" />
]

---

You can do much more in ggplot.

- Use images
- Make maps
- Pick colors that you want

---

Check out [the ggplot flipbook](https://evamaerey.github.io/ggplot_flipbook/ggplot_flipbook_xaringan.html#1) for some inspiration.

---

- [BBC](https://bbc.github.io/rcookbook/)
- [fivethirtyeight](https://blog.revolutionanalytics.com/2016/07/data-journalism-with-r-at-538.html?utm_content=bufferc03e0&utm_medium=social&utm_source=twitter.com&utm_campaign=buffer)
- [NY Times](https://livefreeordichotomize.com/2021/04/07/nytimes-map-how-to/)
